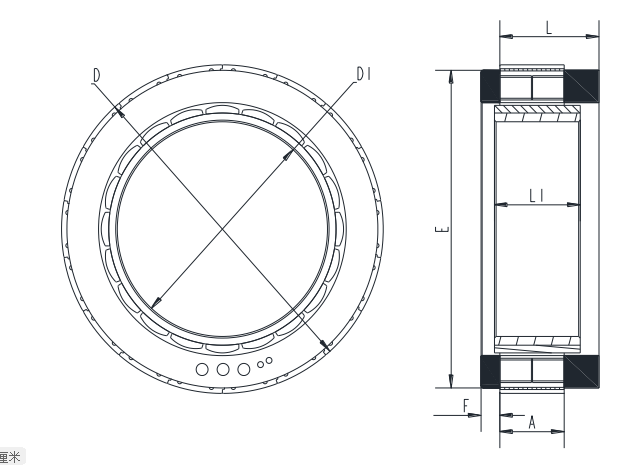

定子外径D

60mm

±0.03(js9)

定子长度L

22.2mm

/

转子内径D1

39.2mm

(+0.039/0)H8

转子长度L1

16mm

±0.2

灌胶面外圆E

58mm

/

灌胶面高度F

3.7mm

±0.5

定子铁芯高度A

12mm

/

介电强度

( Dielectric Strength )

1000VAC/1S.2mA

绝缘电阻

 ( Insulation Resistance )

100MΩ, 500VDC

环境温度

( Ambient Temperature )

-20°C   ~   +50°C

绝缘等级

(Insulation Class)

Class B

黄色  ( Yellow )

UL1332   AWG16

U相 (   Phase U )

红色  ( Red )

V相 (   Phase V )

黑色  ( Black)

W相 (   Phase W )

极数  ( Number   of poles )

20

相数  ( Number   of phases )

3

额定电压 ( Rated    voltage )

VDC

48

额定转矩 ( Rated torque)

N.m

0.45

额定电流(Rated current)

A

5.0

额定速度 ( Rated speed )     ;

RPM

4000

额定功率 ( Rated power )

W

188

最大转速(Maximum speed)

RPM

5200

峰值转矩 ( Peak torque )

N.m

1.35

峰值电流 ( Peak current )

A

15

线电阻 ( Line to line resistance )

ohms@20℃

0.58

线电感 ( Line to line inductance )

mH

0.47

转矩常数 ( Torque constant )

Nm/A

0.102

反电势 ( Back EMF )

Vrms/KRPM

6.15

重量 ( Weight )

g

160

电气时间常数(Electrical time constant)

ms

0.81
